sūsa Mini Gear Oil Circulation Pump

Part No. 17-311-00-0005
Original Price $366.45
Current Price $311.48

Notify me when back in stock

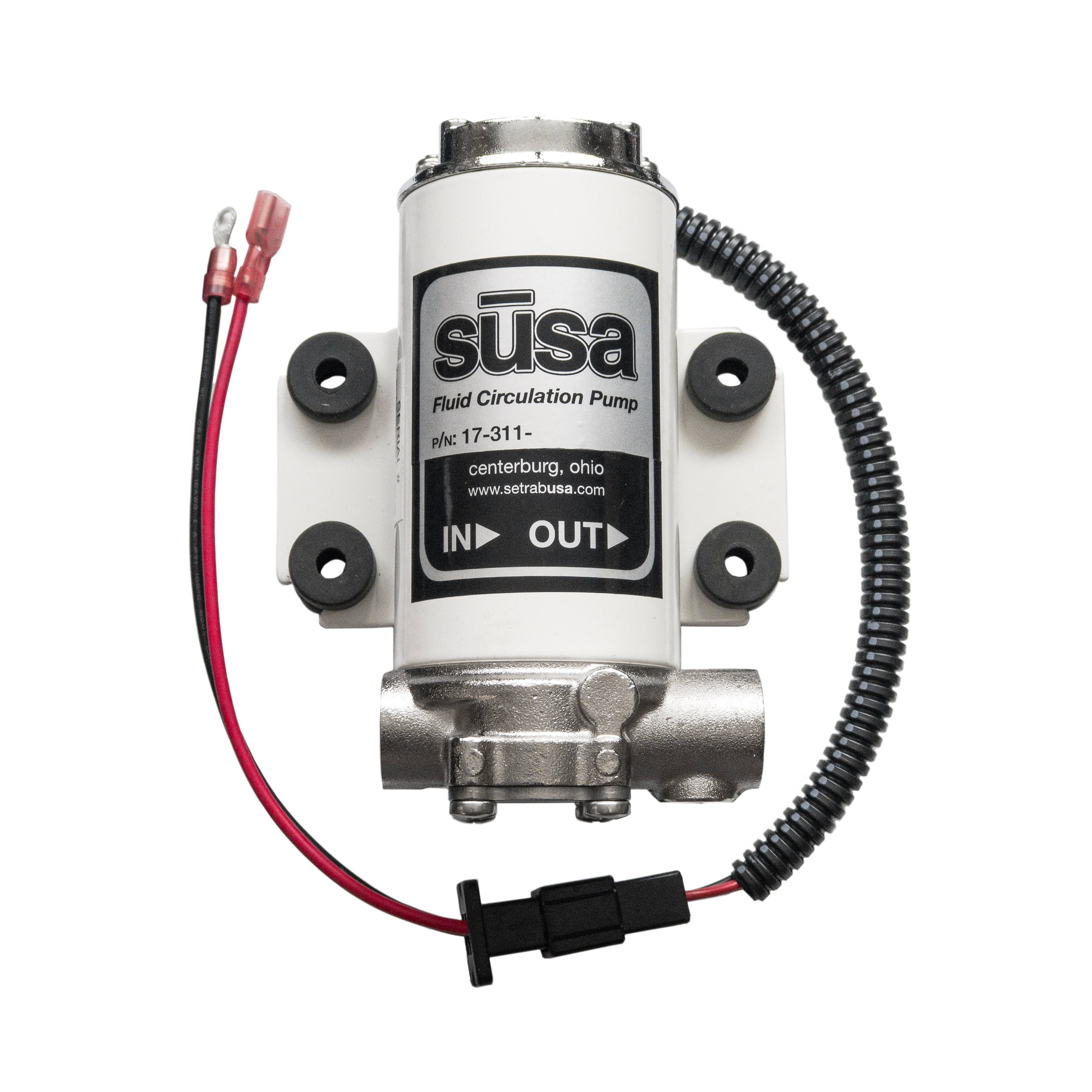

The sūsa mini gear oil circulation pump is a 12V positive displacement pump with no internal bypass. Typical applications are differential/gearbox cooling circuits.

This self-priming pump is designed to circulate oil and water-based fluids, features bronze helical gears and nickel-plated brass pump head. Rated IP-67 for all-weather performance.

Compact, lightweight, and durable, the sūsa oil circulation pump complements the entire range of sūsa differential/gearbox cooling components, creating a high-performance systems solution.

Installation Instructions


Pump Specifications
Ports 3/8" BSPP
Max. work pressure 22 psi
Max. work temp. Tested to 250 ºF
Flow rate 0.9 gpm (1/2" ID hose)
Self priming 5 ft (wet gears)
Compatible fluids Oil with viscosity < 350 cSt
Pump head Brass, nickel-plated
Gears Bronze, helical
Motor 12 V with stainless-steel shaft and fluoroelastomer lip seal, rated IP-67
Amperage draw 2.5 A / 12 V
Weight 2.6 lb without fittings or filter

Performance Data
