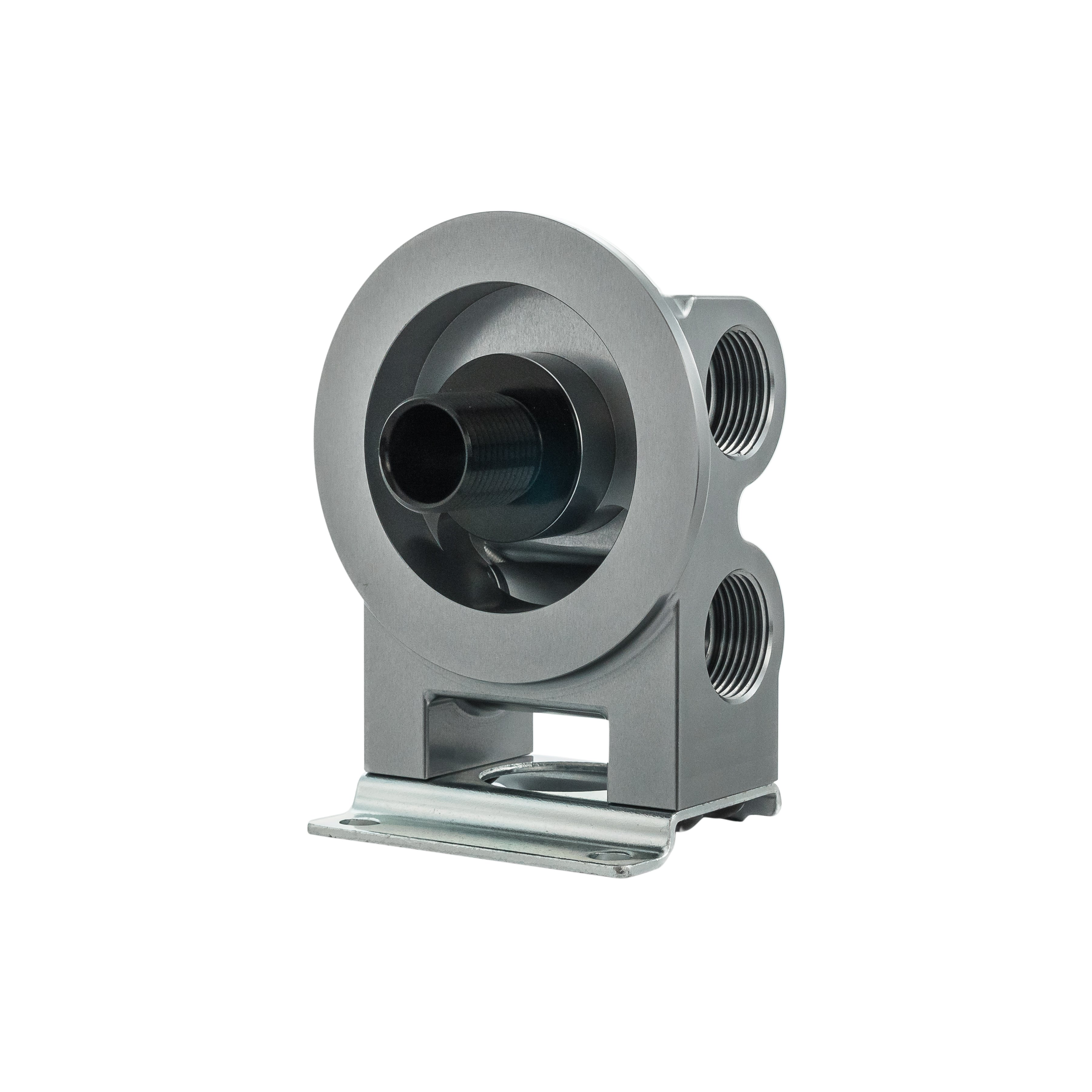

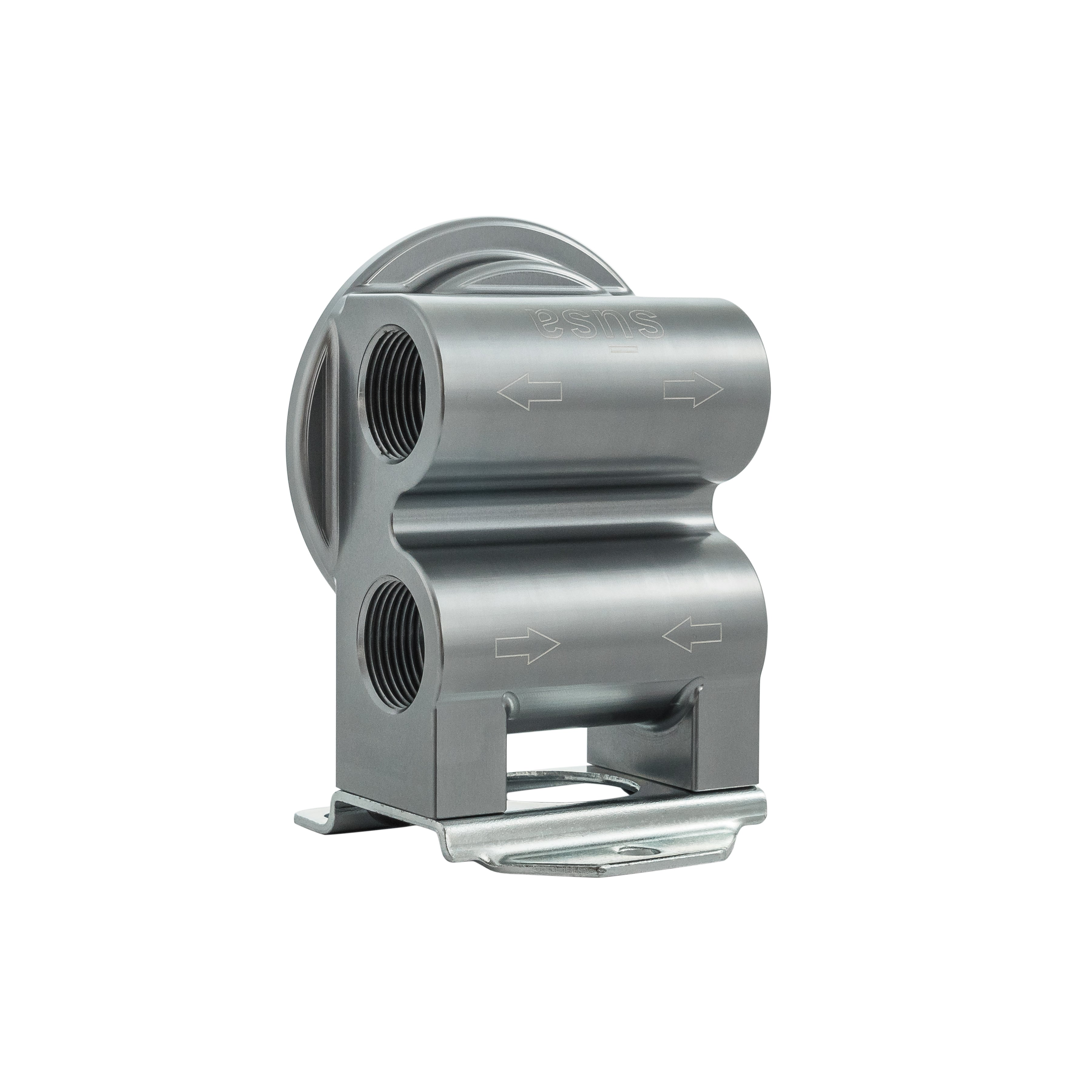

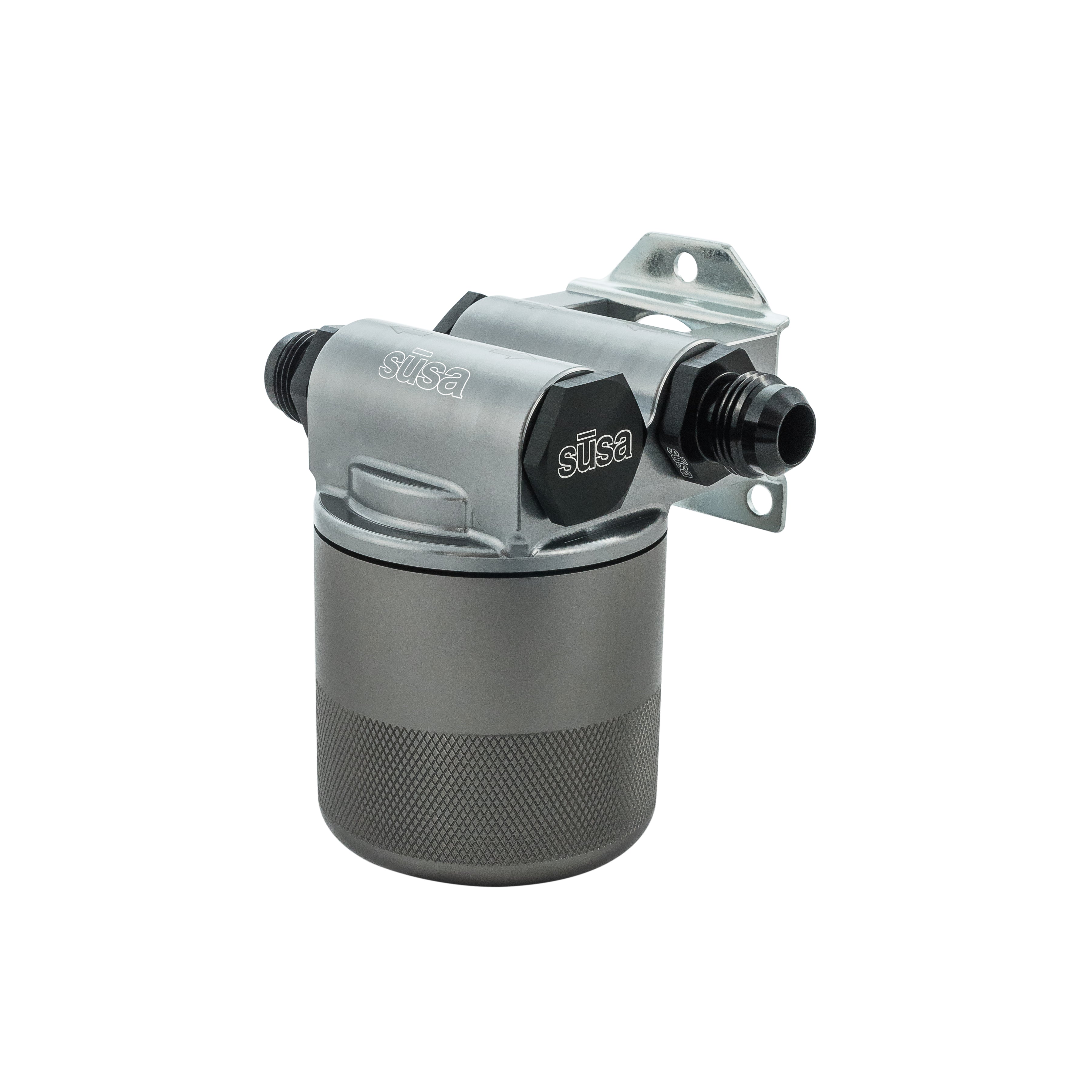

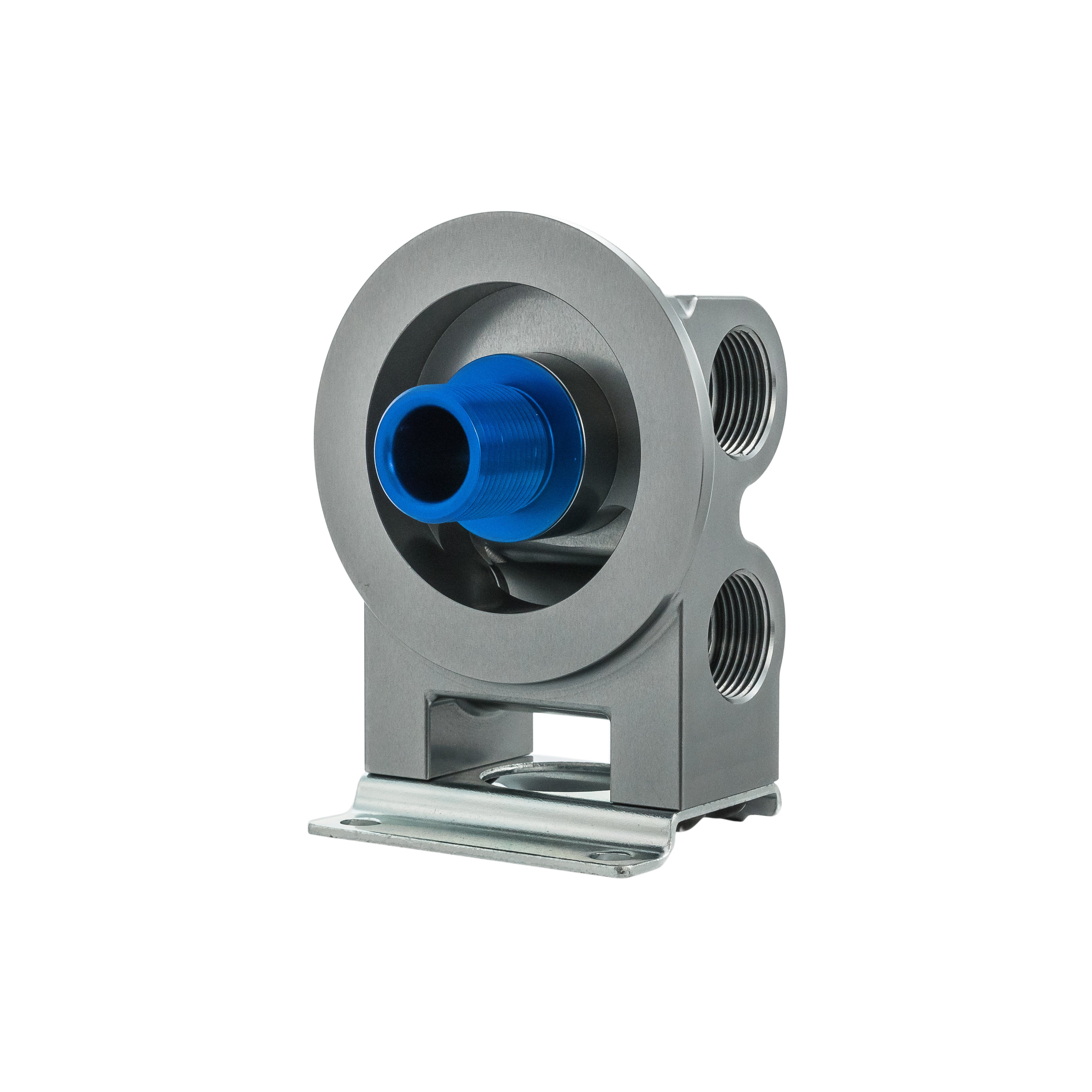

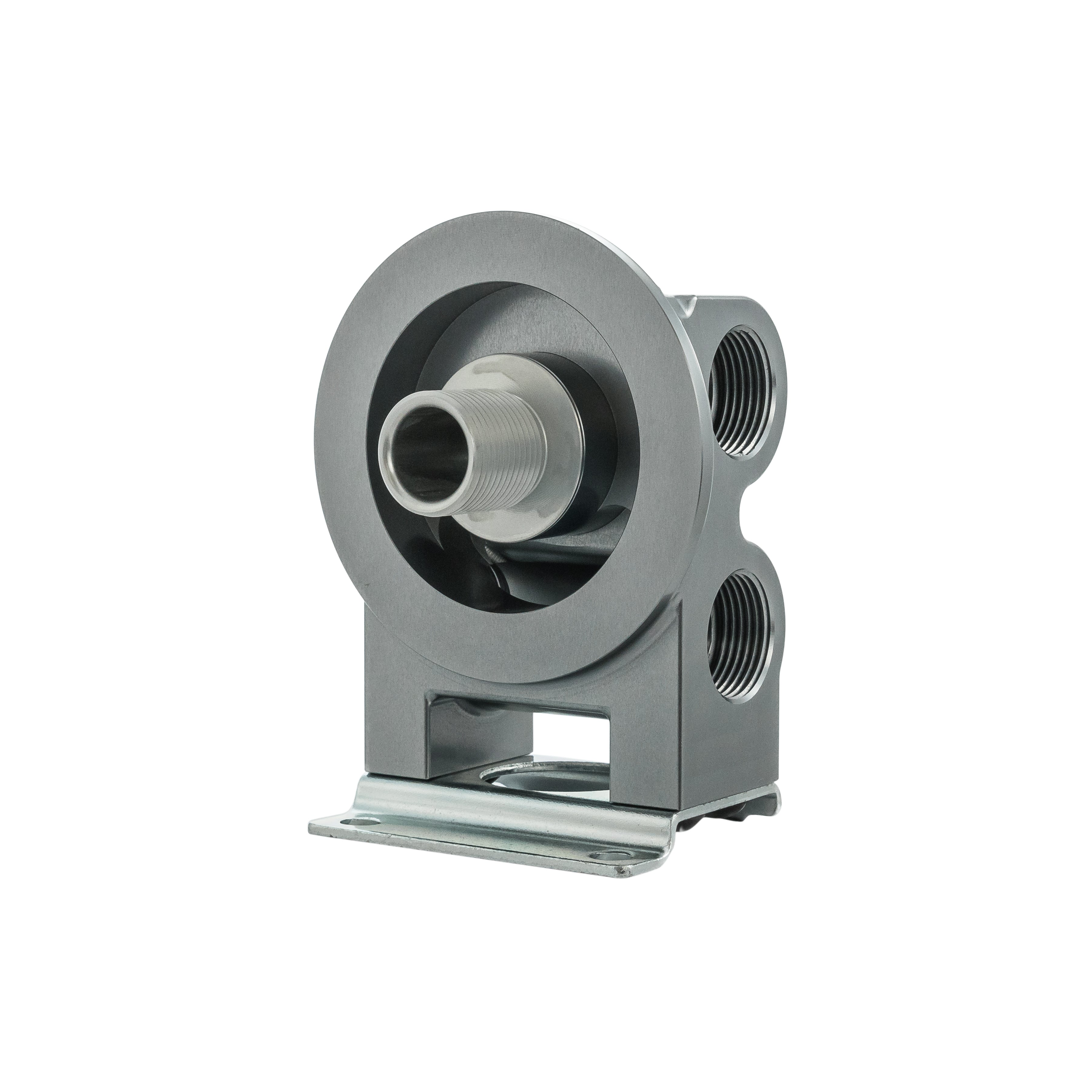

sūsa Remote Oil Filter Stand - 77mm

P/N: 18-RFHU77-13-22
Original Price $159.05
Current Price $135.20

Notify me when back in stock

- INSTRUCTIONS -

The sūsa remote oil filter stand provides relocation of the oil filter for more convenient access to the filter and/or the easy installation of an oil cooler.

Machined from billet aluminum and finished with durable anodizing in titanium gunmetal gray.

Design provides multiple options for oil flow entrance & exit depending on application requirements. Included heavy-gauge steel mounting plate offers multiple orientations for adaptability.

The 77mm filter landing is designed for small-to-medium-format spin-on oil filter canisters.

Notes:

  • This item does not work with AN16 or banjo adapter fittings.
  • Fitting Port Thread: Female ProLine (M22 x 1.5)

Includes:

  • (x1) - sūsa Remote Oil Filter Stand - 77mm
  • (x1) - Mounting Bracket
  • (x4) - Screws - M6x14
  • (x1) - Oil Filter Stem (select size)
  • (x1) - M22x1.5 ProLine Plug
  • (x1) - M22x1.5 to 1/8" NPT ProLine Port Bushing
  • (x1) - 1/8" NPT Plug
  • (x1) - sūsa Thread Glue - Red


Specifications

Filter landing sealing surface Port Size Filter nipple thread Part Number
ID OD
54 mm (2.13 in)

77 mm (3.03 in)

M22x1.5 13/16"-16 18-RFHU77-13-22
M20x1.5 18-RFHU77-20-22
M22x1.5 18-RFHU77-22-22
3/4"-16 18-RFHU77-34-22
