Setrab ProLine STD Oil Coolers
Setrab ProLine STD range oil coolers are the most flexible high-performance oil coolers on the market. The ProLine STD series integrate low-profile, 22mm female ports for adaptability to any system using ProLine adapter fittings.

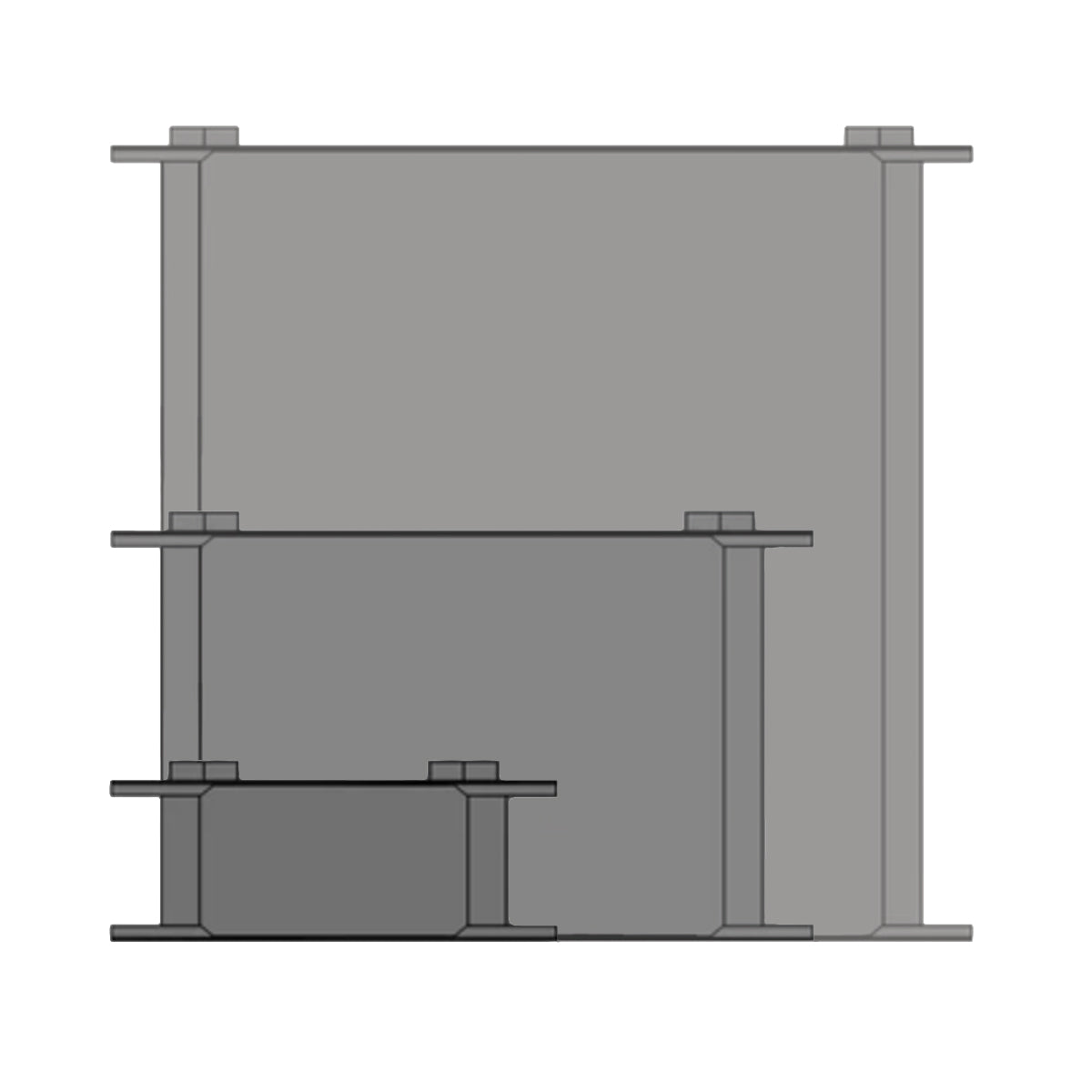

The stacked-plate style of Setrab's STD range offers the advantage of many height possibilities within the various series' widths. In addition, this technique, coupled with state-of-the-art brazing technology, makes for a durable, highly-efficient, and beautifully simplistic design that is often imitated but never replicated.
All STD ProLine coolers are built using the same design principles and as a result, they all share similar internal characteristics. Different sizes are offered for different cooling needs. Sometimes more than one cooler may be suitable for the same application depending on the allotted space.
Setrab ProLine oil coolers feature low-profile M22x1.5 female ports, adaptable to any common size you may need using SUSA ProLine Adapter Fittings.
(fittings and plugs sold separately)
Specifications
Ports: M22 ProLine (22mm x 1.5 female thread)
Max connection tightening torque: 40Nm (29.5 ft/lbs)
Material: Aluminum
Color: Black
Working Pressure: 0-10 Bar Dynamical
Max Pressure: 12 Bar (1x104 pulsations)
Burst Pressure: 37 Bar
Working Temp: -40 to 150 °C (Temperatures above 120 °C pressure
pulsations has to be evaluated)
Inner Cleanliness: ISO 4406 16/14 (alternative available upon request)
General Dimensional Tolerance: ISO 2768-v
Fluid Compatibility: Oil; water containing min. 40% glycol or corrosion
inhibitors.
Notes
Setrab STD ProLine oil coolers are to be mounted securely and isolated from vibration and flex. We recommend and offer size-specific mounting bracket kits for this reason, though custom brackets and mounting solutions may be used so long as the previously noted conditions are met.
The size of a cooler is dependent on system requirements. If you are unsure what size cooler you may need. Please use our contact page for a system consultation. Mounting and placement of the cooler are essential to its success. Size of lines is dependent on the cooling application: transmissions usually use -06 or -08, engine oil coolers commonly use -10 or -12 but could use size -06 to -16 depending on oil flow.
When orienting the cooler, if the ports are unable to be plumbed facing up or down, it is recommended to plumb the cooler so that the inlet port is below the outlet, so oil may be allowed to continuously fill the cooler throughout use.
Fitment
Universal - Non-Specific.
Setrab ProLine STD oil coolers are used across the world in automotive and industrial applications. If you are looking for a direct replacement, please refer to the Part Number label between the female ports on the top plate of the cooler.
The determined size of an oil cooler is dependent on the heat rejection requirements for a system. If you need assistance with the selection of a size, please use our contact page for a consultation.
Please refer to the Oil Cooler Page for recommended coolers and information on flow and heat rejection expectations as it may apply to your system.
Printable PDF: ProLine STD Oil Cooler Drawing
