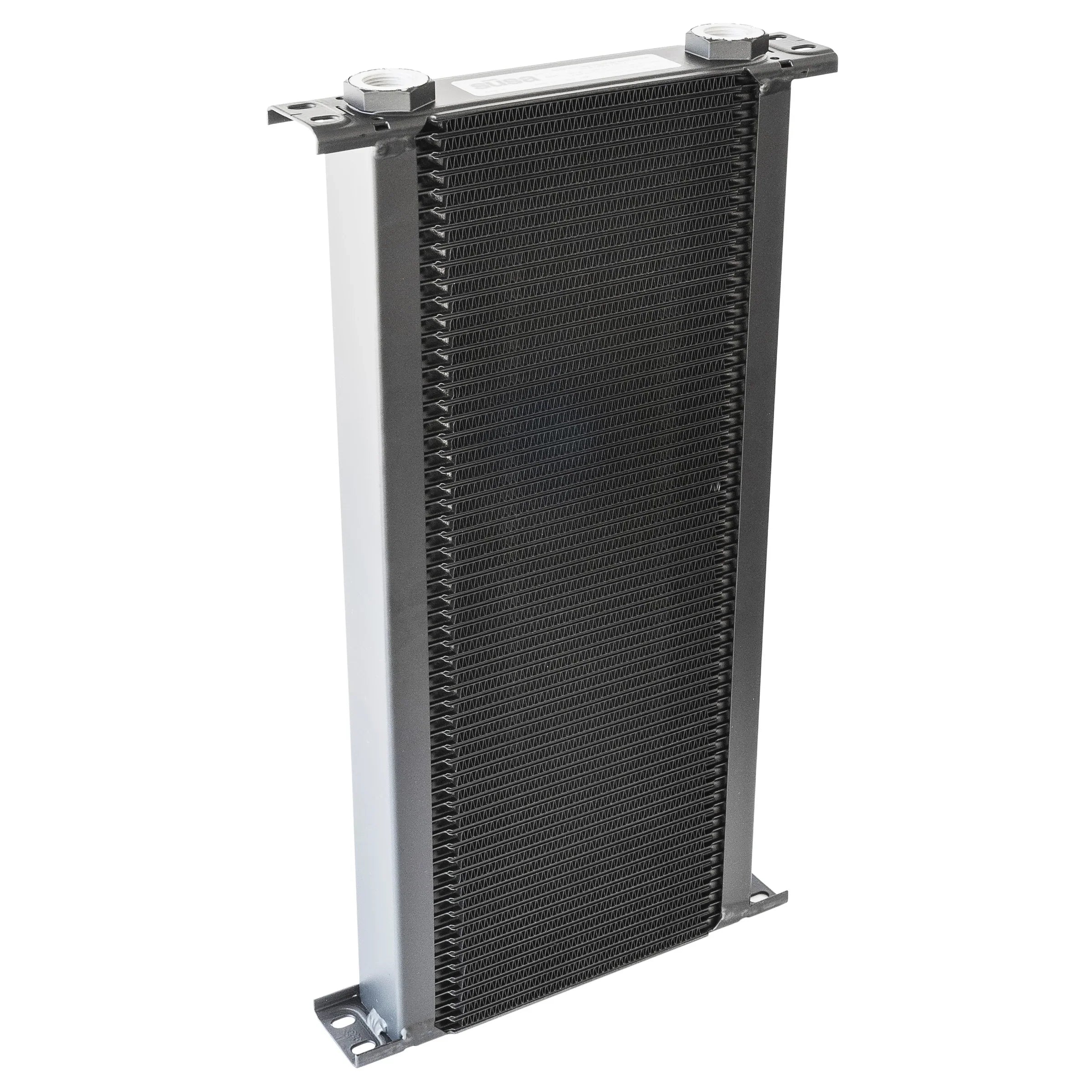

Setrab ProLine SSTD Oil Coolers - Super Standard
Setrab ProLine SSTD (super standard) oil coolers represent the top tier in an already superior system of high-performance oil radiators. The modification of the internal turbulators allow for more movement of oil and greater exposure to the cooling surface area, resulting in greater capacity for heat rejection per cubic inch. This is accomplished while maintaining the same minimal pressure drop and superior flow characteristics that our customers have come to expect.
The SSTD cooler is available in a 3-series width, with the option for 32 or 60 rows. These specific sizes were decided upon for their similarity to our most popular oil coolers and, therefore, their ability to provide the broadest coverage of applications in just two sizes. Both SSTD coolers perform exceptionally as engine and transmission coolers when available space is an issue and a higher heat reduction capacity is needed.
Setrab ProLine oil coolers feature M22 female ports, adaptable to virtually any size using SUSA ProLine Adapter Fittings.
(fittings and plugs sold separately)
Specifications
Ports: M22 ProLine (22mm x 1.5 female thread)
Max connection tightening torque: 40Nm (29.5 ft/lbs)
Material: Aluminum
Color: Black
Working Pressure: 0-10 Bar Dynamical
Max Pressure: 12 Bar (1x104 pulsations)
Burst Pressure: 37 Bar
Working Temp: -40 to 150 °C (Temperatures above 120 °C pressure
pulsations has to be evaluated)
Inner Cleanliness: ISO 4406 16/14 (alternative available upon request)
General Dimensional Tolerance: ISO 2768-v
Fluid Compatibility: Oil; water containing min. 40% glycol or corrosion
inhibitors.
Notes
Setrab SSTD (Super Standard) ProLine oil coolers are to be mounted securely and isolated from vibration and flex. We recommend and offer mounting bracket kits for this reason, though custom brackets and mounting solutions may be used so long as the previously noted conditions are met.
The size of a cooler is dependent on system requirements. If you are unsure what size cooler you may need. Please use our contact page for a system consultation. Mounting and placement of the cooler are essential to its success. Size of lines is dependent on the cooling application: transmissions usually use -06 or -08, engine oil coolers commonly use -10 or -12 but could use size -06 to -16 depending on oil flow.
Fitment
Universal - Non-Specific.
Setrab ProLine SSTD oil coolers are used across the world in automotive and industrial applications. If you are looking for a direct replacement, please refer to the Part Number label between the female ports on the top plate of the cooler.
The determined size of an oil cooler is dependent on the heat rejection requirements for a system. If you need assistance with the selection of a size, please use our contact page for a consultation.
Please refer to the Oil Cooler Page for recommended coolers and information on flow and heat rejection expectations as it may apply to your system.
