Setrab ProLine SSTD Fanpacks
- INSTRUCTIONS -
The exclusive sizes of the Setrab ProLine STD Super oil cooler were selected for their broad range of high-performance applications, so it is a natural progression to utilize them in these highly versatile Super FanPacks.
The SSTD oil coolers are able to perform at a greater capacity within a smaller footprint due to the modification of the internal turbulators. This results in an increase of the internal surface area, allowing for greater cooling capacity per cubic inch, all while maintaining the superior flow and optimal pressure drop that the world has come to expect from a Setrab oil cooler.
Setrab SSTD ProLine oil coolers feature low-profile M22x1.5 female ports, adaptable to any common size you may need using SUSA ProLine Adapter Fittings.
(fittings and plugs sold separately)
Specifications
Dependent on heat rejection requirements, both SSTD FanPacks are perfect for transmissions, differentials, and engine cooling applications. The powder coated steel shrouds include integrated mounting tabs (including 70A durometer rubber pads) that allow for rigid, face mounting, isolating the aluminum core from chassis shock and vibration.
Ports: M22 ProLine (22mm x 1.5 female thread)
Max connection tightening torque: 40Nm (29.5 ft/lbs)
Material: Aluminum
Color: Black
Working Pressure: 0-10 Bar Dynamical
Max Pressure: 12 Bar (1x104 pulsations)
Burst Pressure: 37 Bar
Working Temp: -40 to 150 °C (Temperatures above 120 °C pressure
pulsations has to be evaluated)
Inner Cleanliness: ISO 4406 16/14 (alternative available upon request)
General Dimensional Tolerance: ISO 2768-v
Fluid Compatibility: Oil; water containing min. 40% glycol or corrosion
inhibitors.
Shroud Material: Steel
Shroud Finish: Powder Coated Black
Fans: 6.5" SPAL fan(s) - 330CFM @ 0 static pressure (per fan) ; 12V brushed
Included

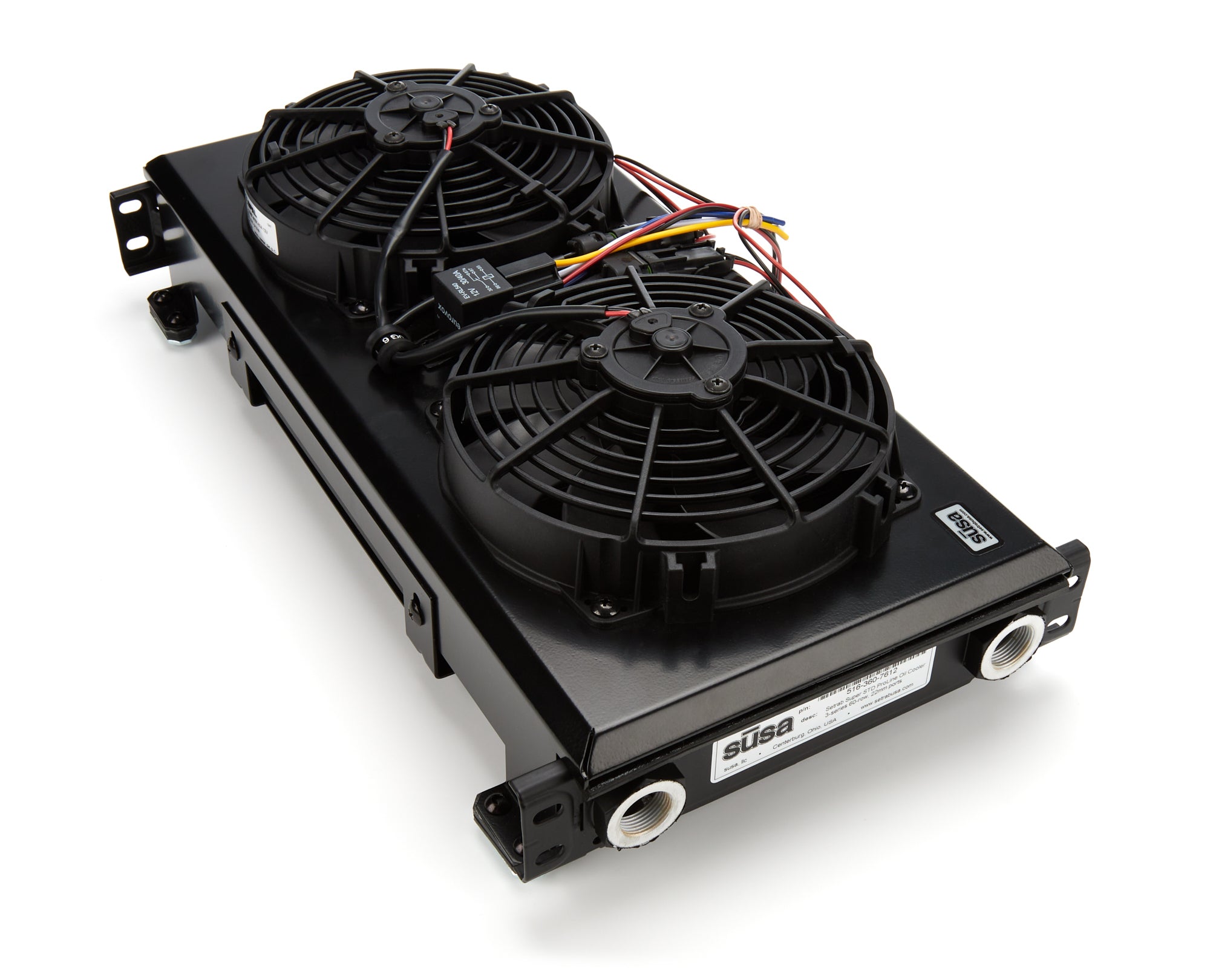

Each Setrab ProLine FanPack includes a cooler, fan(s), fan shroud with side brackets, and pigtail wiring lead.
All FanPacks come fully assembled.
