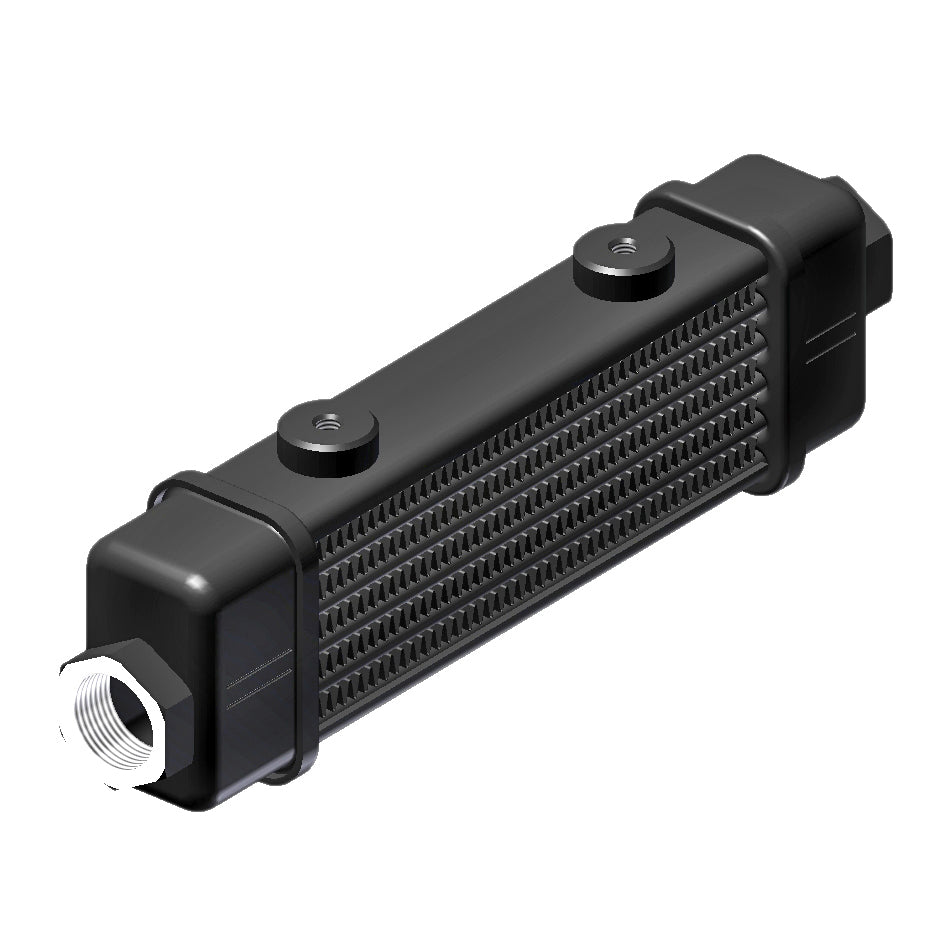

Setrab ProLine SLM Oil Coolers

Please refer to the Oil Cooler Page for recommended coolers and information on flow and heat rejection expectations as it may apply to your system.

Setrab ProLine SLM range oil coolers were developed for demanding applications where space is also very limited. ProLine SLM coolers feature the adaptability of the 22mm ProLine system, end-tank ports, and threaded mounting bosses.

The slimmed-down package is over 20% thinner than the ProLine STD range.

The design of Setrab's SLM range allows for a multitude of widths that are not possible in other style coolers.

Setrab ProLine oil coolers feature low-profile M22x1.5 female ports, adaptable to any common size you may need using sūsa ProLine Adapter Fittings.

(fittings and plugs sold separately)

Notes:

Mounting: Setrab SLM ProLine oil coolers are to be mounted securely and isolated from vibration and flex. We recommend and offer SLM mounting bracket kits for this reason, though custom brackets and mounting solutions may be used so long as the previously noted conditions are met.

Sizing: The size of a cooler is dependent on system requirements. If you are unsure what size cooler you may need. Please use our contact page for a system consultation. Mounting and placement of the cooler are essential to its success. Size of lines is dependent on the cooling application: transmissions usually use -06 or -08, engine oil coolers commonly use -10 or -12 but could use size -06 to -16 depending on oil flow.

Orientation: Due to the sizes and flow characteristics of the ProLine SLM series of coolers, any desired orientation is acceptable during mounting. Horizontal placement is usually preferred due to the long nature of the coolers, but vertical mounting is also acceptable.
